Overview

Is medium exchange in a CPC (Cell Processing Center) a burden?

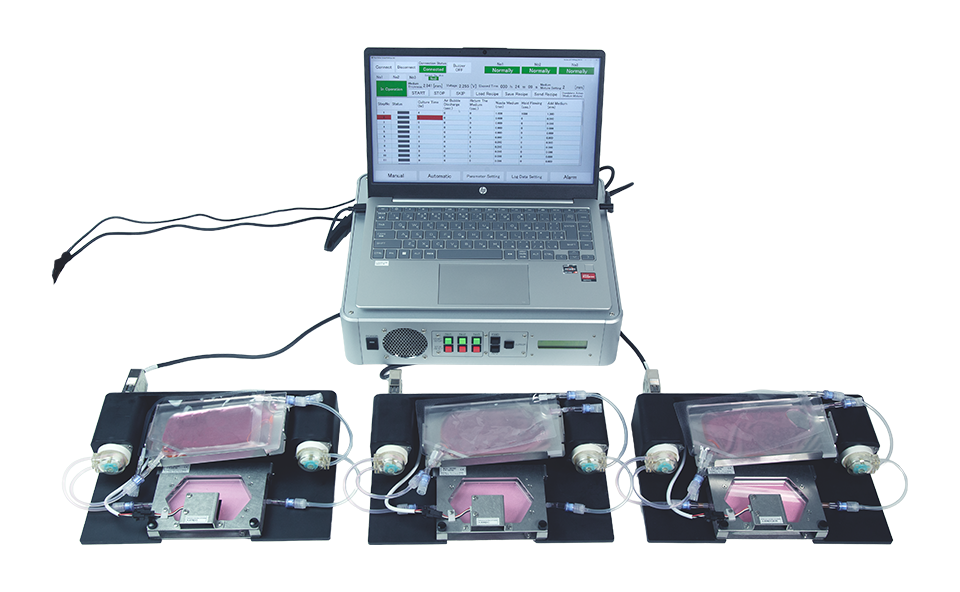

This cell culture system enables medium exchange within the bag while maintaining a closed system. Up to three units can be operated at the same time.
Sensors measure the liquid level in the bag, allowing precise control of medium input and output.

Features

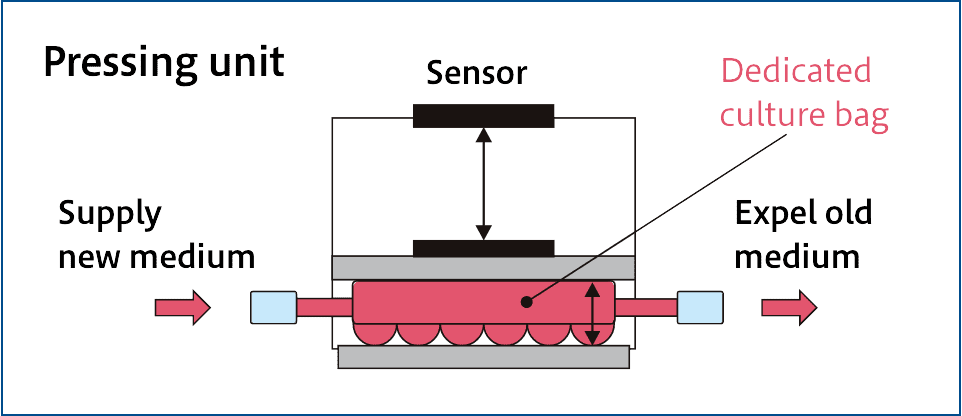

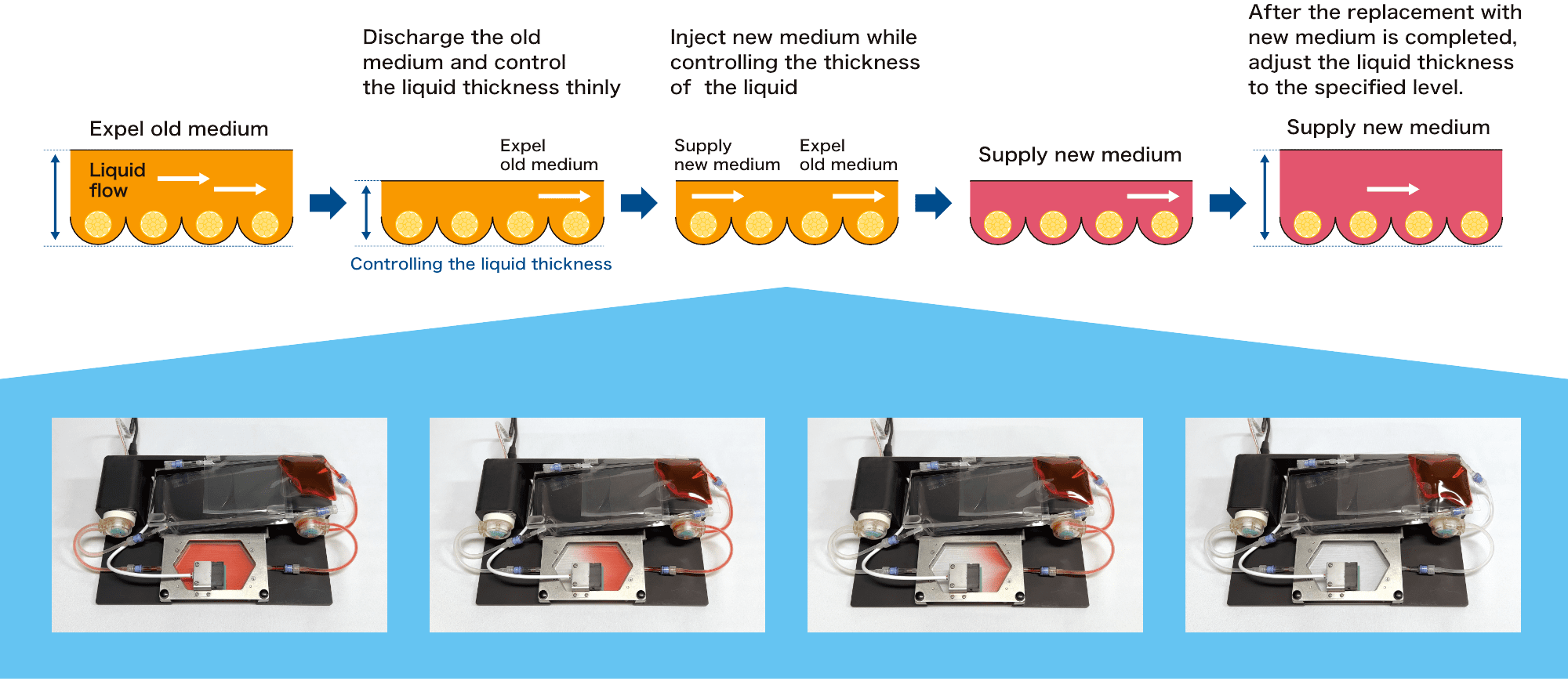

1. Adopts a unique liquid thickness control method suitable for the bag culture

The pressure unit is equipped with a sensor to measure the thickness of the liquid in the bag, and while measuring the thickness of the liquid, it supplies new liquid and controls waste liquid. This method allows precise control of the liquid inside the bag despite its simple configuration.

Uses a unique liquid thickness control method suitable for bag culture

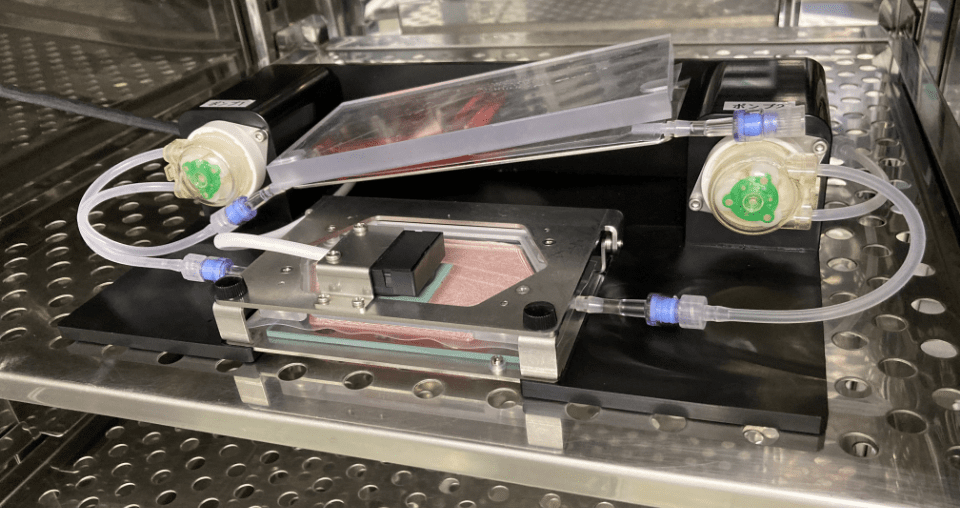

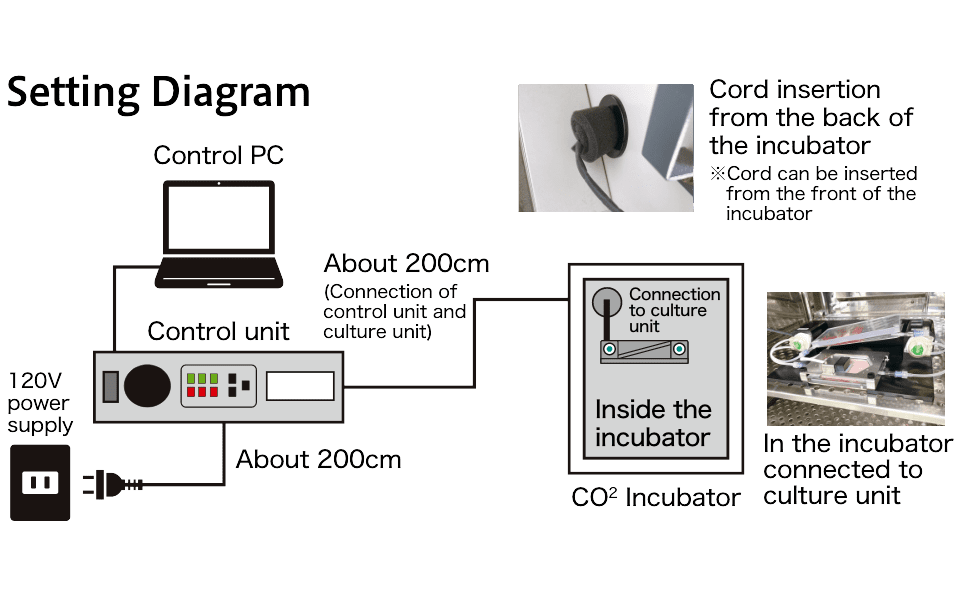

2. Culture unit can be used in an incubator

A culture unit placed inside the incubator is connected via a cable to a control unit outs outside the incubator.

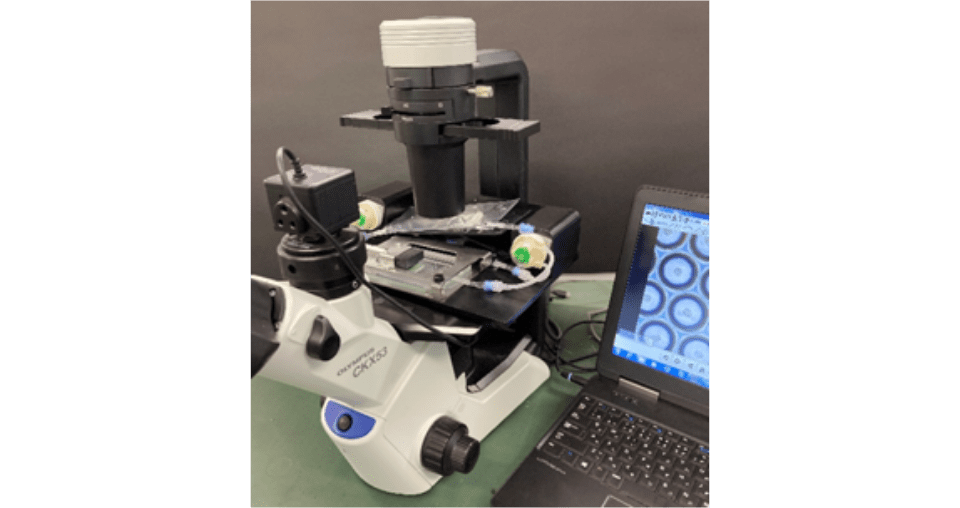

3. Microscopic Observation is possible while maintaining the closed system

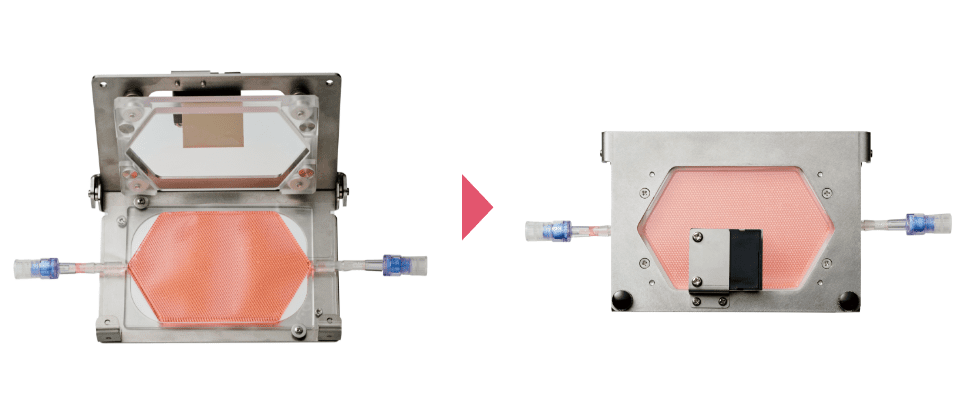

The culture unit can be carried by removing the cable. Microscopic observation is possible through the glass surface of the pressure unit set on the culture unit.

Microscopic observation while maintaining a closed system

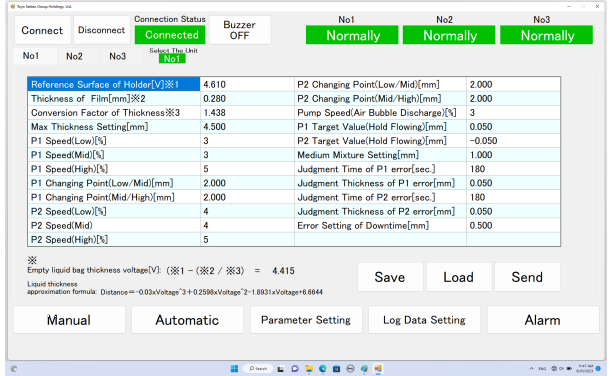

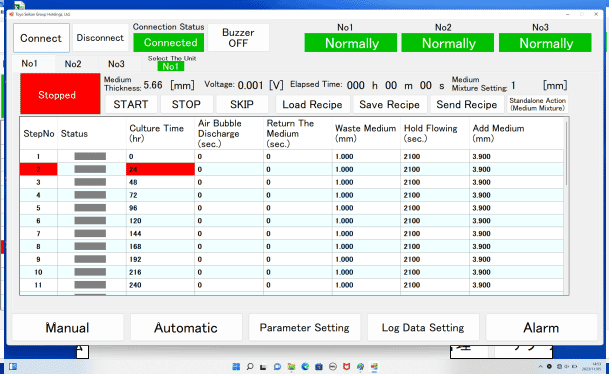

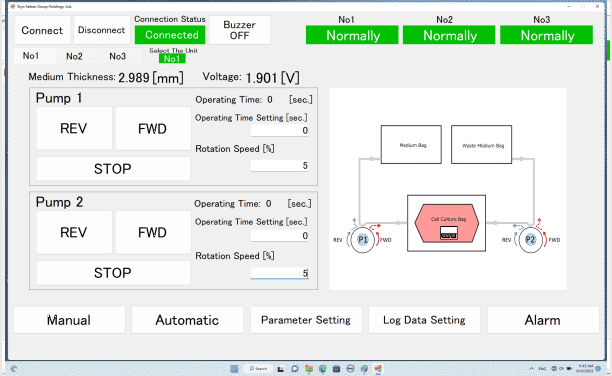

4. Control by dedicated software

The culture system is controlled by dedicated software installed on the control computer. It is possible to set automatic culture medium exchange at any date and time.

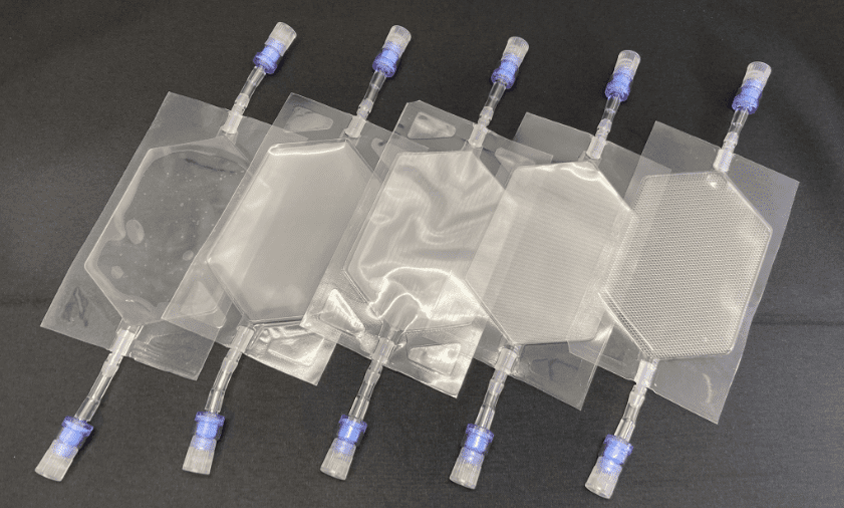

5. Use a dedicated culture bag for the system

By using a WELLBAG dedicated to the system, it can be applied to complete medium exchange and differentiation induction during spheroid formation. In addition, the system-specific bag series, including a bag for adherent cells which currently under development, can be used.

Uses a culture bag dedicated to the system

Product Numbers

Item

Item		Product Code	Quantity

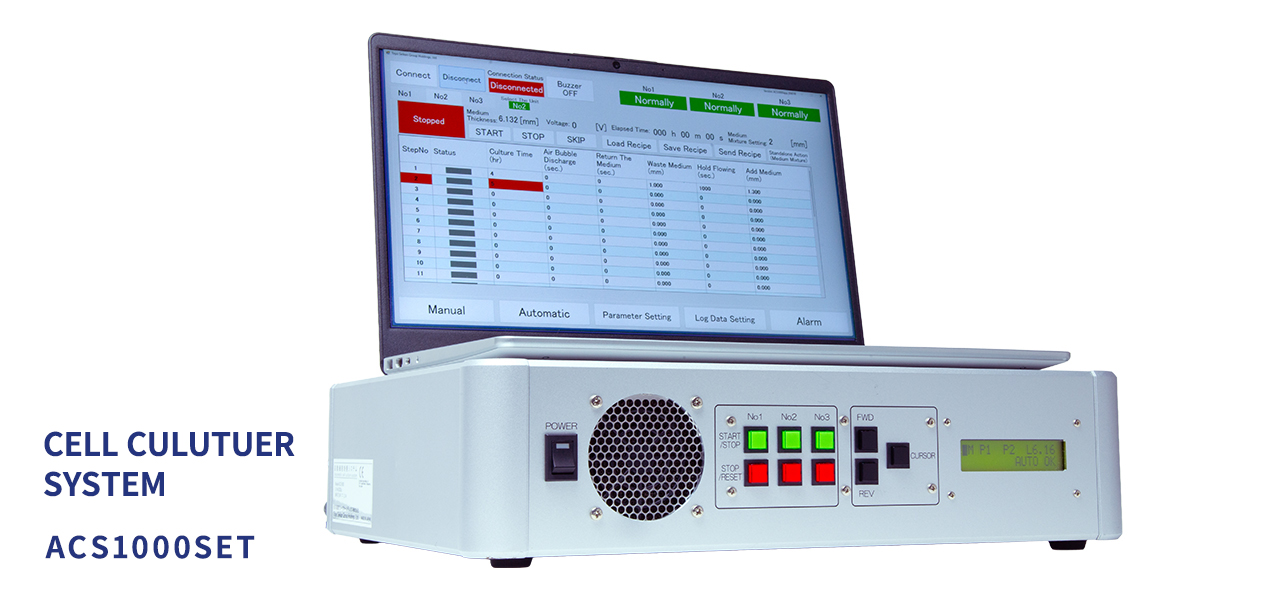

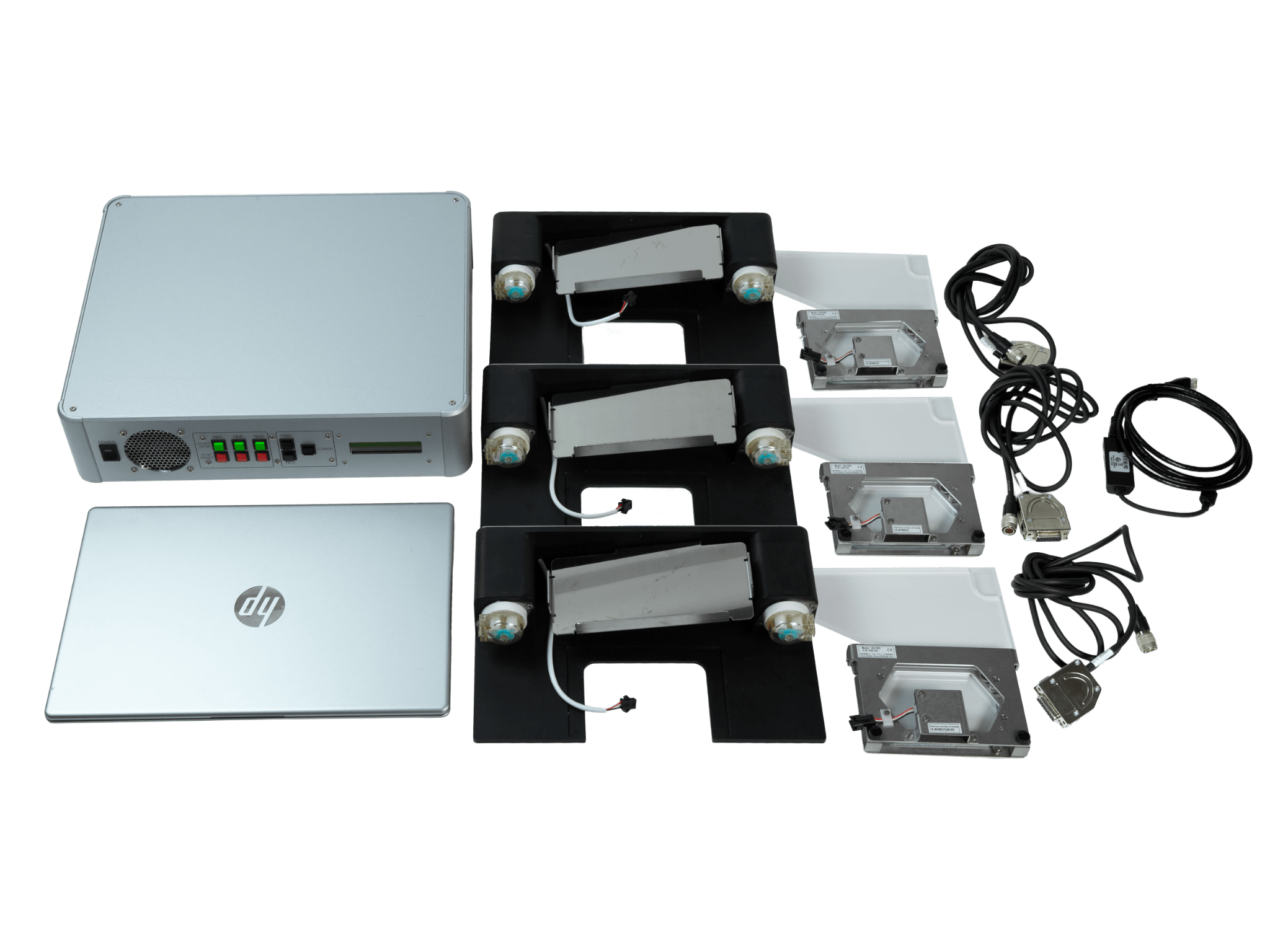

CELL CULTURE SYSTEM ※ACS1000SET		71000-01	①Control unit ×1 (ACS1000) →Size：W360 × D300 × H88 mm ②Culture unit ×3 (CU1000) →Size：W280 × D173 × H60 mm ③Holder unit ×3 (HU1000) ④Control PC ×1 (Special software installed)

Consumables

Consumables	Product Code	Quantity

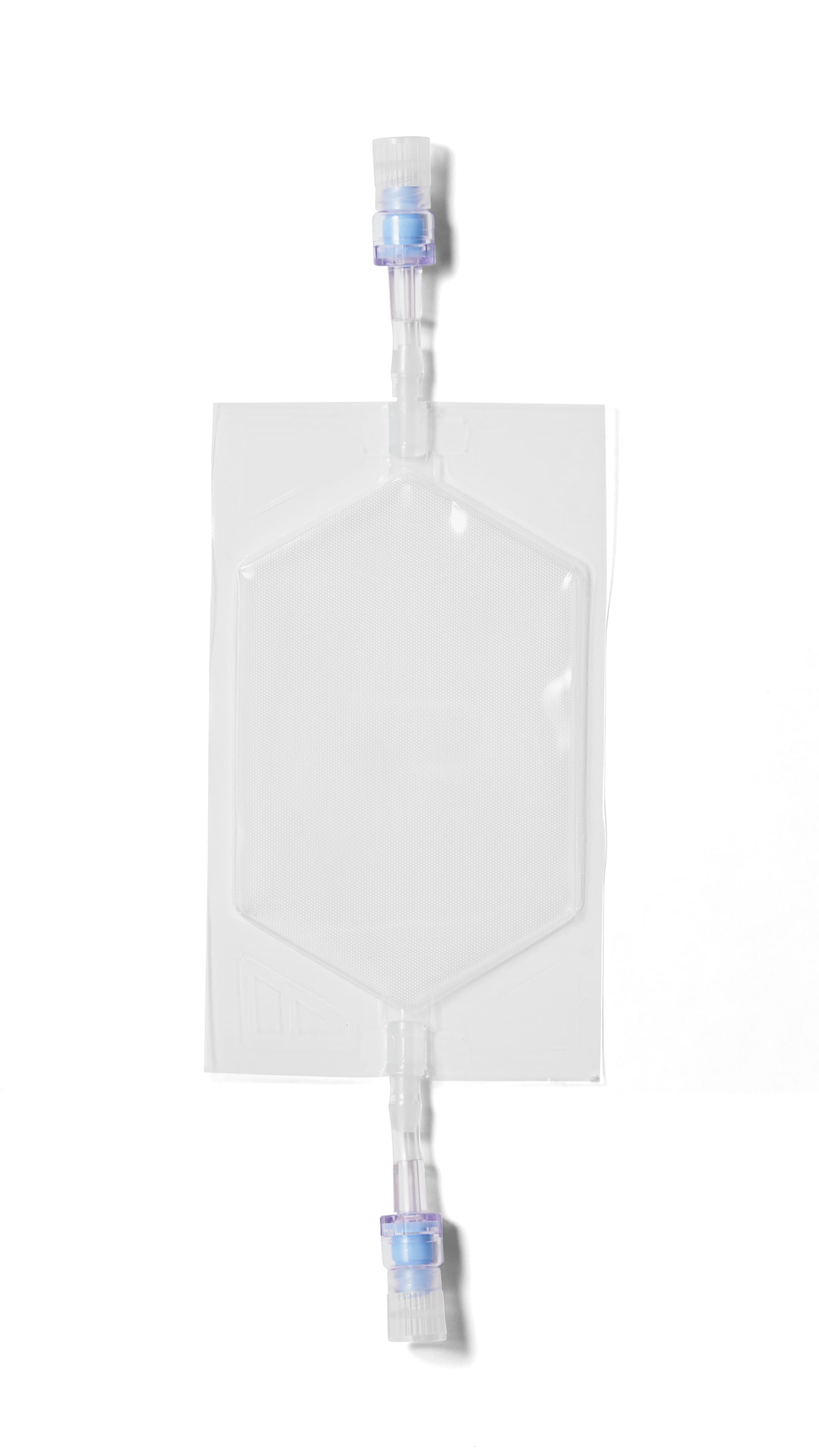

WELLBAG-S500-2PORTS ※For system use, Consumable →Culture area：50cm² →Culture volume：20～20ml	11010-05	Pack of 5 bags
	11010-10	Pack of 10 bags
	11010-00	Pack of 100 bags

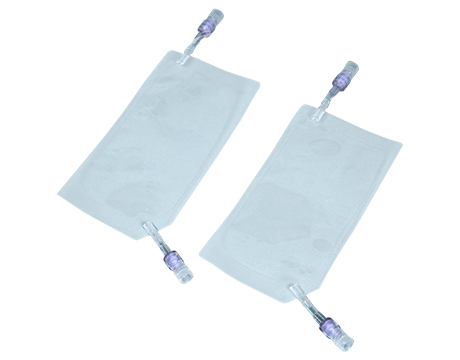

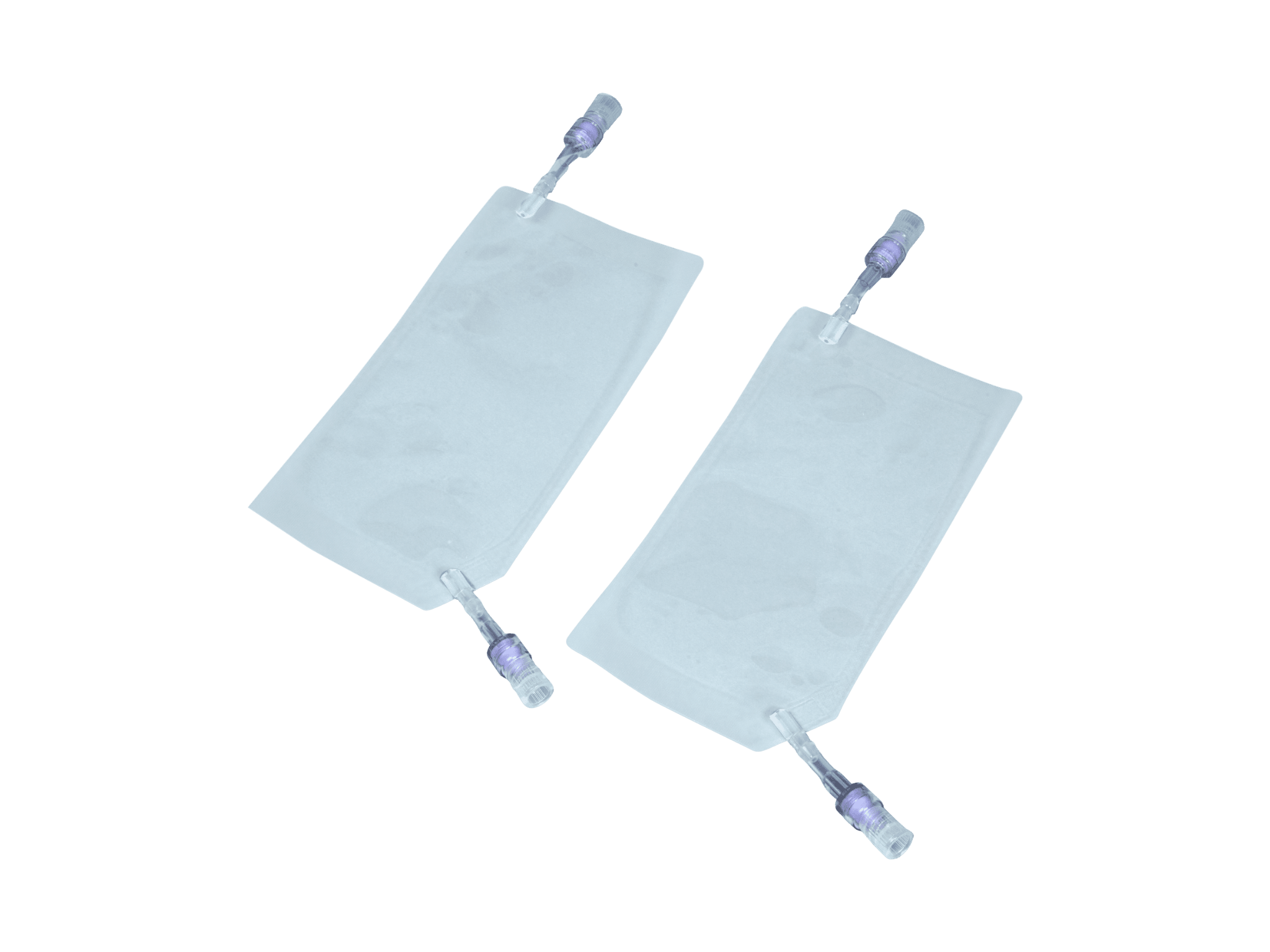

Medium bag-S (Dual-use for Supply/Waste) ※Consumables	B1000-05	5 sets / pack (For 10 bags)
	B1000-10	10 sets / pack (For 20 bags)
	B1000-00	100 sets / pack (For 200 bags)

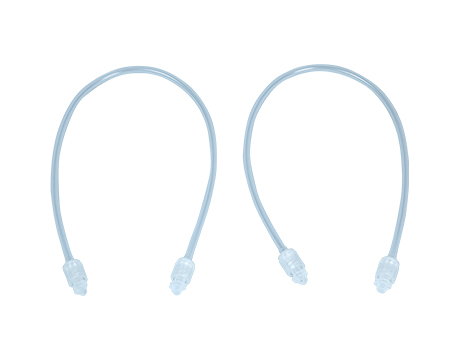

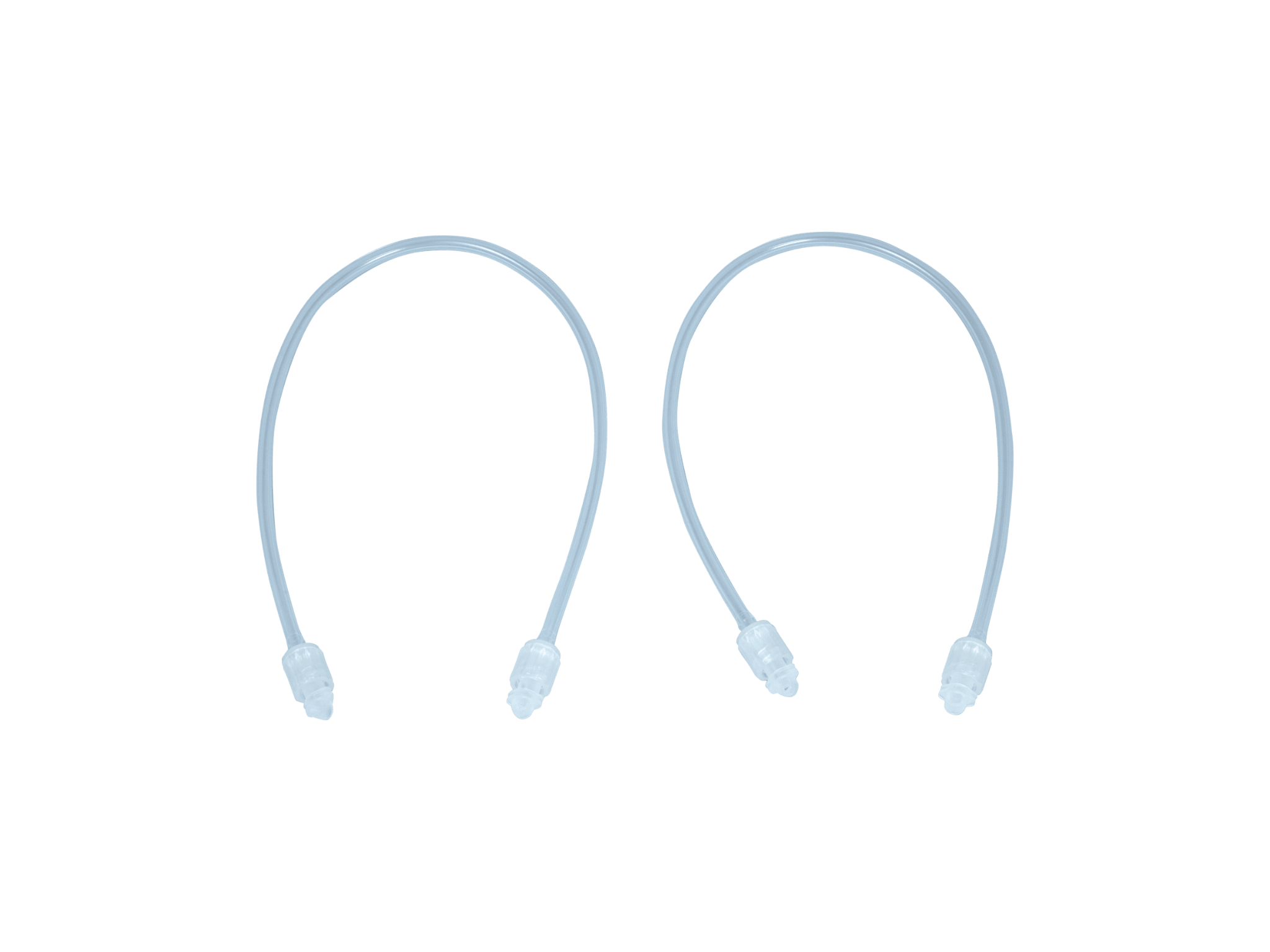

Pumping Tube-S ※For peristaltic pump ※Consumables	T1000-05	5 sets / pack (For 10 tubes)
	T1000-10	10 sets / pack (For 20 tubes)
	T1000-00	100 sets / pack (For 200 tubes)
